M16 waterproof cable connectors 6 Cores IP68 screw thread connector

产品介绍: M16 waterproof cable connectors 6 Cores IP68 screw thread connector for power supply. can be both for cable and panel mount (back panel mount). female and male matching as a set.
Model: M16 threaded (back panel)
Unit Price:

please contact us

$
MOQ: 1000
Delivery period: 10-14 DAYS
Part code: M16-6C-NB
Ladder price:

please contact us

Quantity: - +   piece(Inventory:piece)

售价:
市场价:

support hotline: Feel free to contact us at sales@sinruitech.com and call 0755-26738082
Goods details:

Products Name:M16 waterproof cable connectors 6 Cores IP68 screw thread connector for power supply. can be both for cable and panel mount (back panel mount). female and male matching as a set.


Products Descrption:

It is an IP68 level connectors with interface M16 screwthread that it is in mass production, and we supply it as power supply connectors in electric. aviation, telecommunication as well as  industrial control devices.


Material:

  1. Product type: Threaded cable connectors,

  2. Mating interface: M16, cicurlar screw thread

  3. Mounting: with cables, by soldering, clamping.

  4. Cores: 6 cores (optional 2,3,4,5,6,7,9P)

  5. Cable size: suitable for cable diameter 6~8mm.


  6. Center Contact: Copper alloy, plated Gold

  7. Body: Nylon

    Insulator: PPS

    Seal: Rubber

    Tail Nut: PA


Specifcation
ItemDescriptionValue
1All Material RoHSCompliant
2Waterproof Level

Over IP68

3Rated Temperature-25 to 125 Degree
4Life Cycle500 cycles
5Rated Voltage250V AC
65ARated Current5A
7

Center Contact

plated thickness

Gold
8Contact Resistance2m Ohms Max.
9Salt Spray Test Hours96 Hours

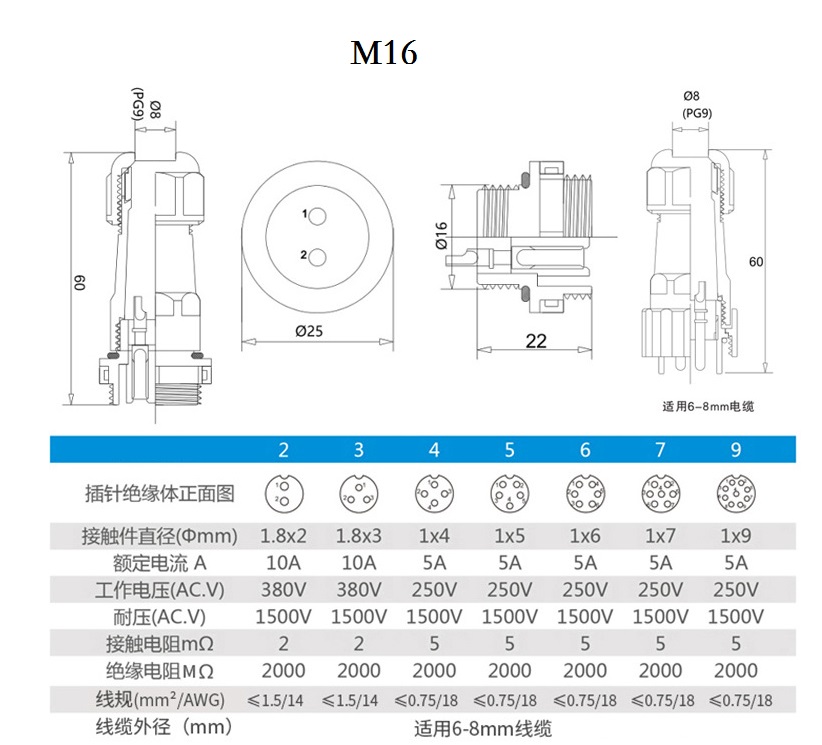

Drawings:
M16 waterproof cable connectors 6 Cores IP68 screw thread connector


Application: vehicle, oir, aviation, equipment, building, petroleum, metallurgy, intelligent robot under the sea,etc.


Function: It provides an excellent electronics conduction, and power charging transmission, meanwhile it can bring you good dust-proof and waterproof.


Sinrui's Advantage and Quality warranty for Circular Connectors

M16 Circular waterproof stainless steel female connectors 2 Cores with cables


(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.


R&D testing Corner:


M16 Circular waterproof stainless steel female connectors 2 Cores with cables


Contact us now!

Our Sales email: sales@sinruitech.com

TEL: +0086 755 26738082 or +0086 755 26738348

Cell: Luis: 0086 13502816005

        Andrew: 0086 16620983840


适应人群:

please contact us

项目流程:

10-14 DAYS

技术优势:
注意事项:
蜕变前后:

Products Name:M16 waterproof cable connectors 6 Cores IP68 screw thread connector for power supply. can be both for cable and panel mount (back panel mount). female and male matching as a set.


Products Descrption:

It is an IP68 level connectors with interface M16 screwthread that it is in mass production, and we supply it as power supply connectors in electric. aviation, telecommunication as well as  industrial control devices.


Material:

  1. Product type: Threaded cable connectors,

  2. Mating interface: M16, cicurlar screw thread

  3. Mounting: with cables, by soldering, clamping.

  4. Cores: 6 cores (optional 2,3,4,5,6,7,9P)

  5. Cable size: suitable for cable diameter 6~8mm.


  6. Center Contact: Copper alloy, plated Gold

  7. Body: Nylon

    Insulator: PPS

    Seal: Rubber

    Tail Nut: PA


Specifcation
ItemDescriptionValue
1All Material RoHSCompliant
2Waterproof Level

Over IP68

3Rated Temperature-25 to 125 Degree
4Life Cycle500 cycles
5Rated Voltage250V AC
65ARated Current5A
7

Center Contact

plated thickness

Gold
8Contact Resistance2m Ohms Max.
9Salt Spray Test Hours96 Hours





Drawings:
M16 waterproof cable connectors 6 Cores IP68 screw thread connector


Application: vehicle, oir, aviation, equipment, building, petroleum, metallurgy, intelligent robot under the sea,etc.


Function: It provides an excellent electronics conduction, and power charging transmission, meanwhile it can bring you good dust-proof and waterproof.


Sinrui's Advantage and Quality warranty for Circular Connectors

M16 Circular waterproof stainless steel female connectors 2 Cores with cables


(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.


R&D testing Corner:


M16 Circular waterproof stainless steel female connectors 2 Cores with cables


Contact us now!

Our Sales email: sales@sinruitech.com

TEL: +0086 755 26738082 or +0086 755 26738348

Cell: Luis: 0086 13502816005

        Andrew: 0086 16620983840
